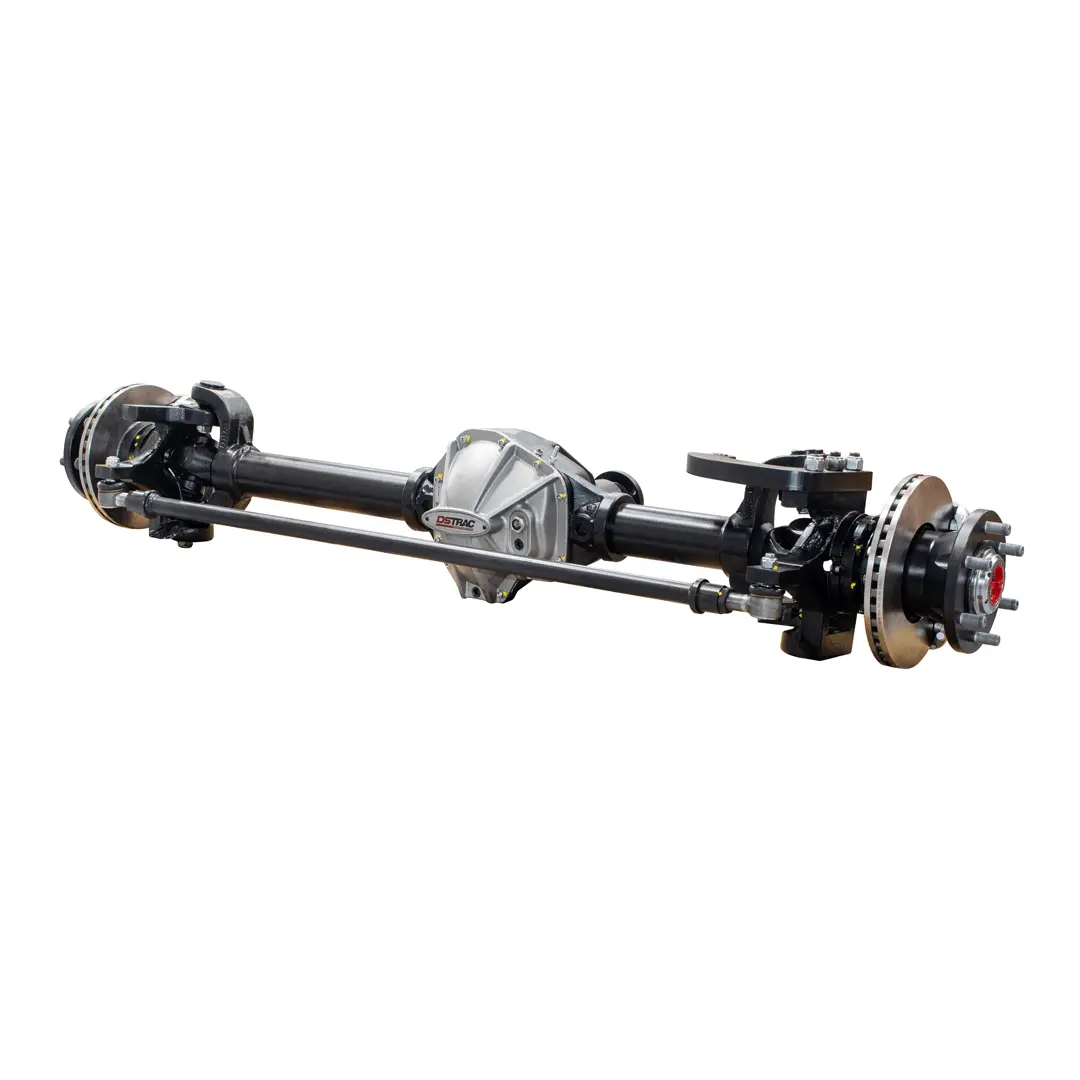

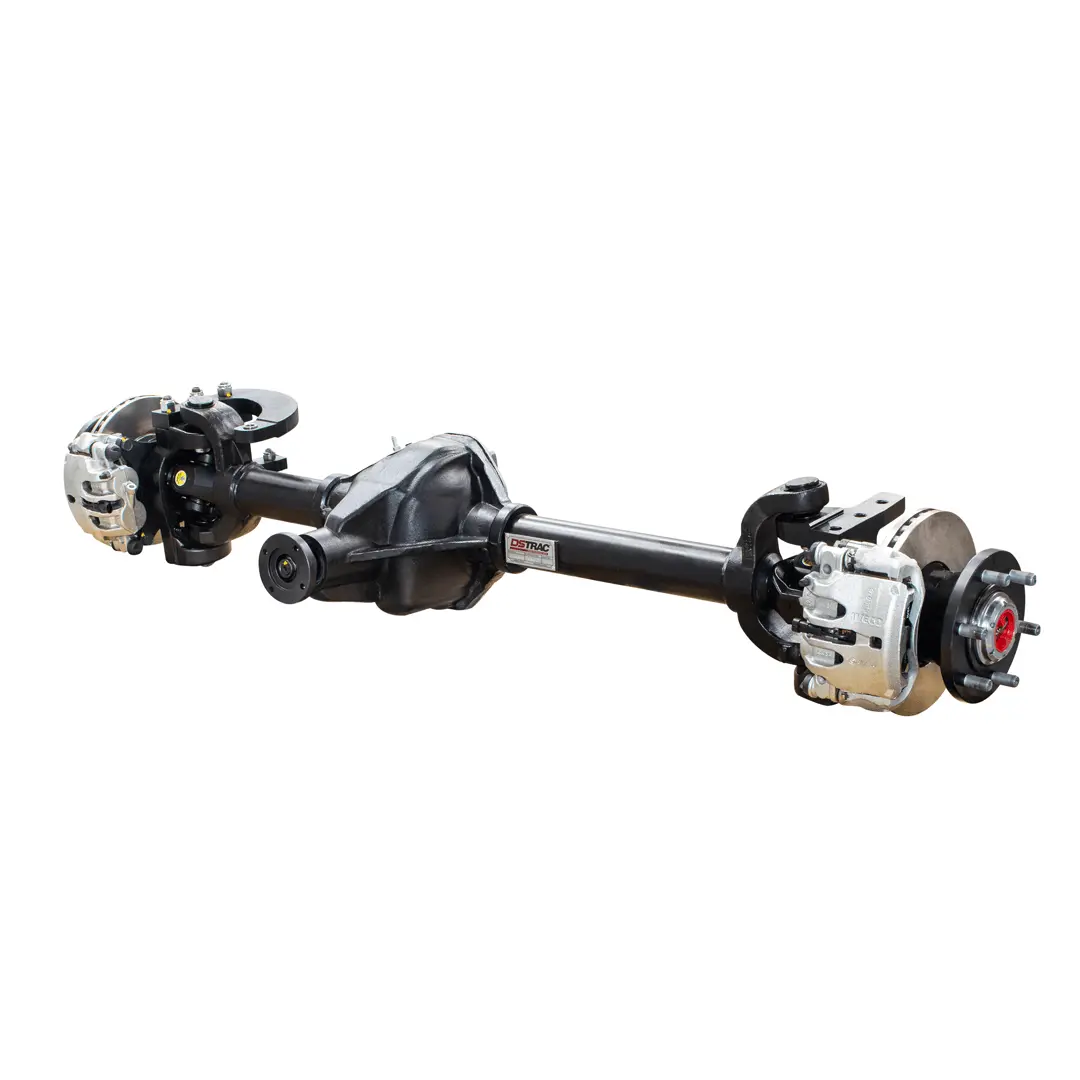

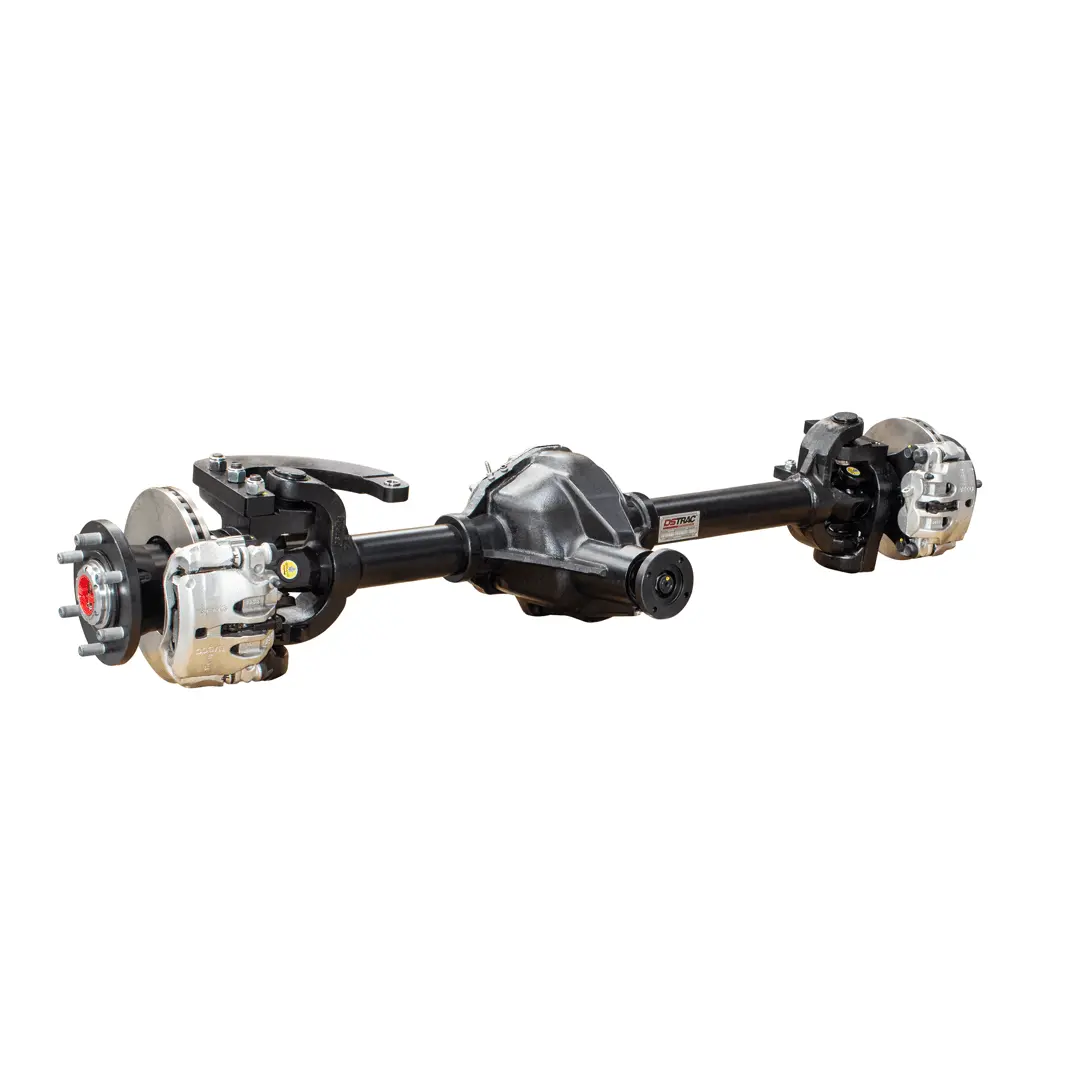

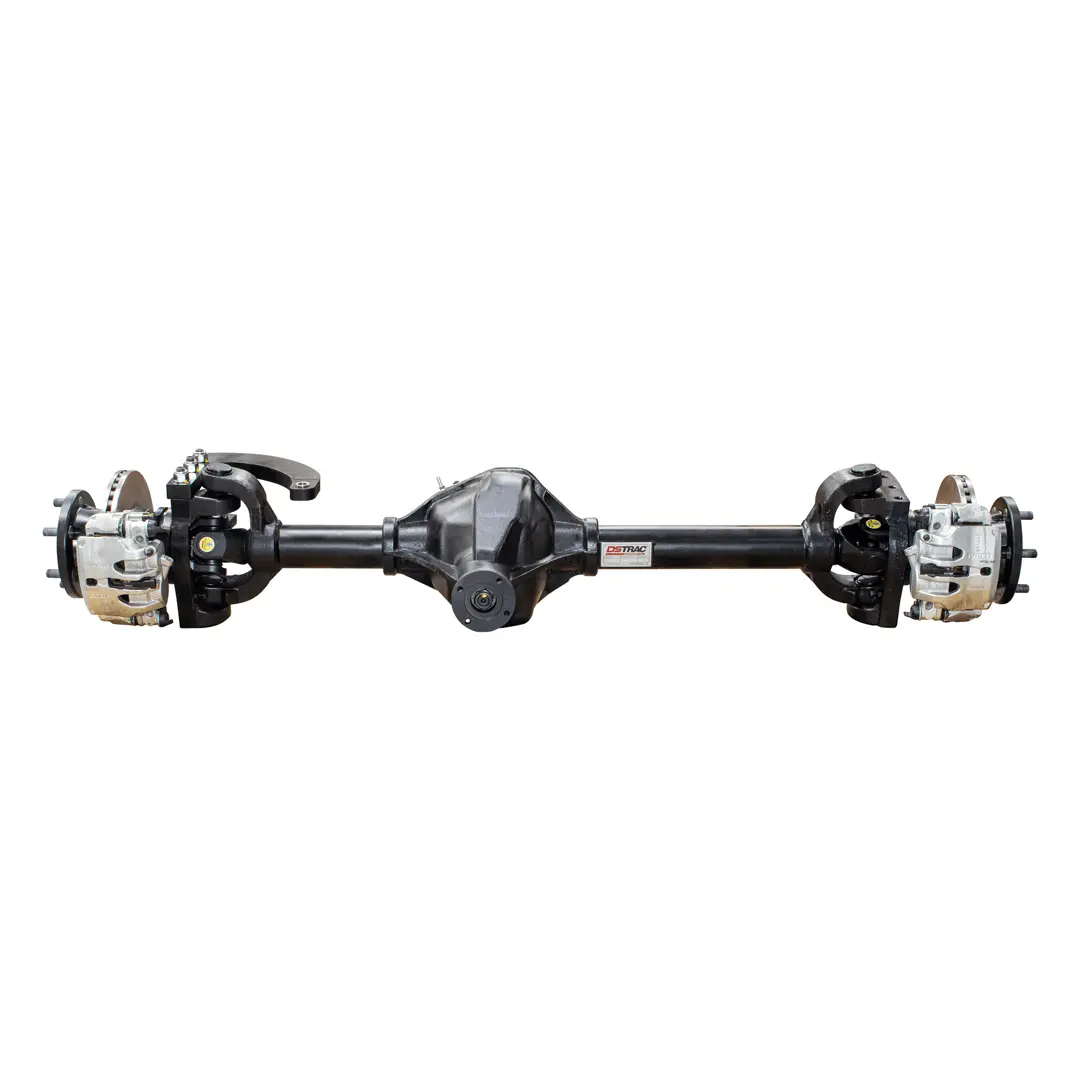

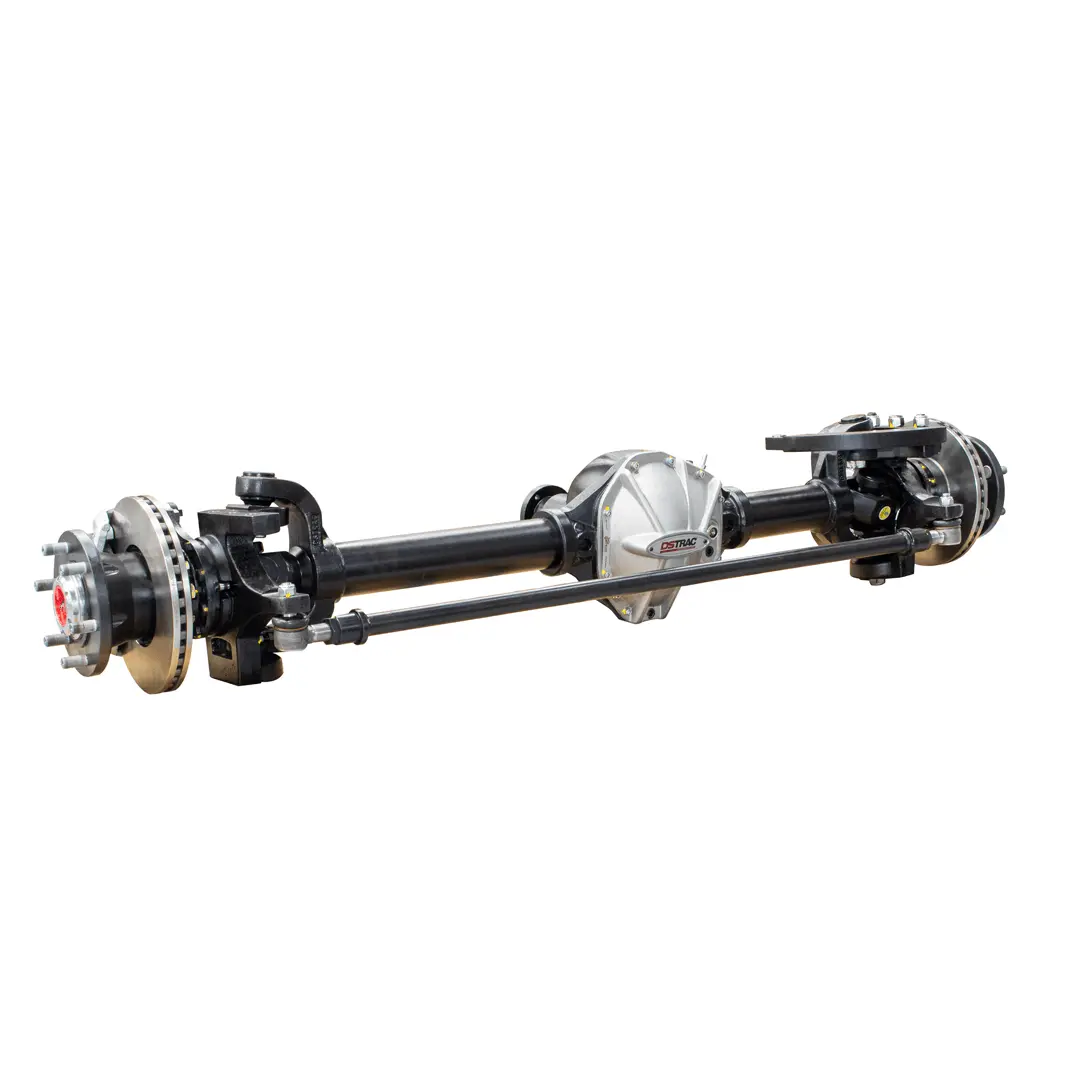

60-Series Front Steering Axle with 35-Spline Heavy-Duty Construction

Description

Axle 60 designed for light trucks and buses 4×4 with special steering arm

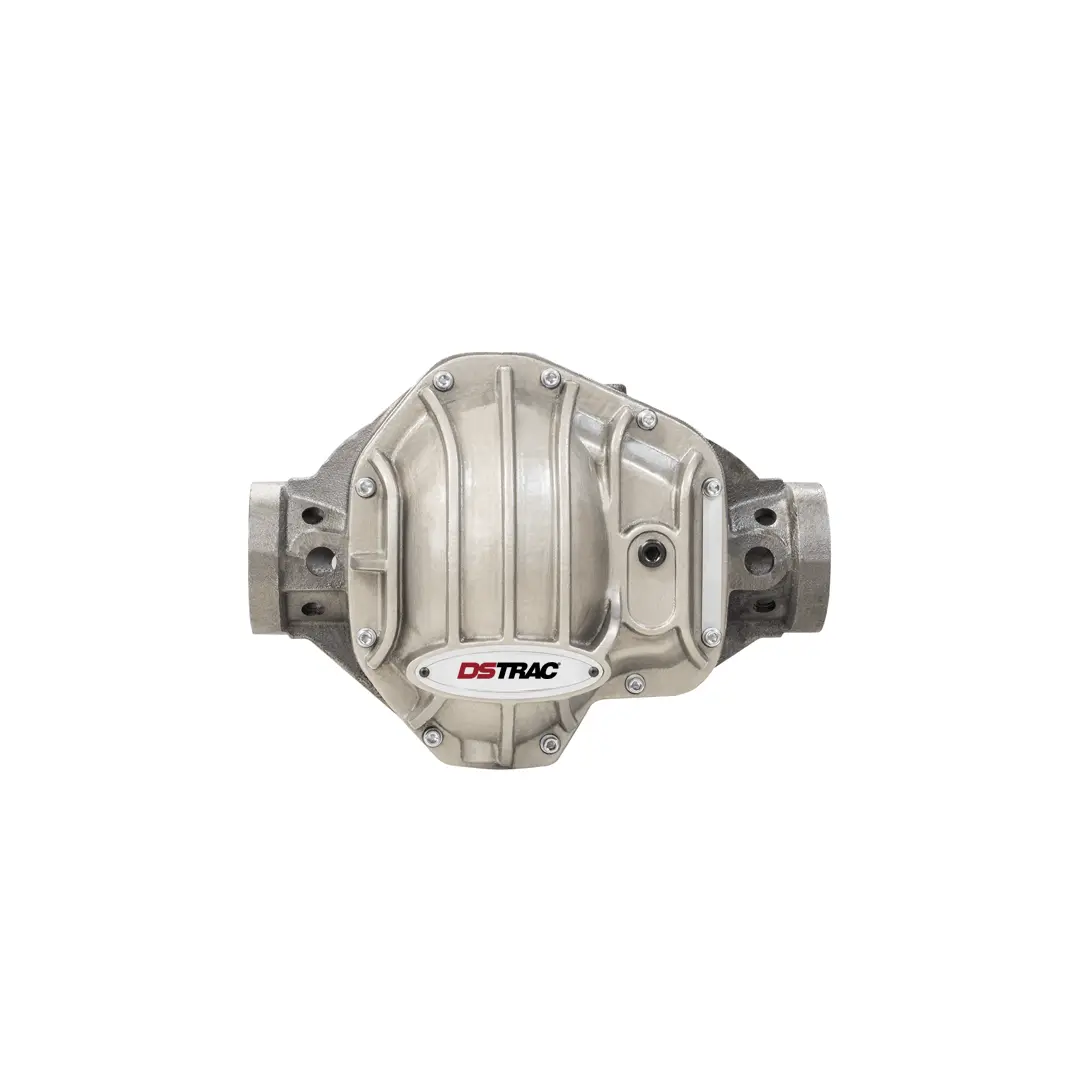

Equipped with our housing Ultra 60 high or low pinion

• DSTRAC truck axles have a Gross Axle Weight Rating (GAWR) of 6,000 pounds
• Heavy Duty 3.5″ diameter, 1/2″ wall axle tubes
• DSTRAC size 60 Knuckles
• DSTRAC 35-spline SAE 4340 Chromoly axle shafts
• DSTRAC U-joints made of forged SAE 4340 chromoly with self-lubricating bushing caps
• F250/350 Lower Ball joints (same used top/bottom) available around USA
• DSTRAC Forged Yoke shaft 1550
• Free wheel manual locking hubs 2.5 ton – 35 splines
• Heavy Duty disc brakes with Brembo calipers
• 6 lug (6 x 205mm)
• Steel cover with magnetic bolt
• Special triple seal to prevent water and clay from entering the axle
• Spool or electric locker 60 available

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
