ASR 32mm hollow front sway bar kit engineered for improved handling and reduced body roll on 2001–2005 Honda Civic and 1990–1993 Acura Integra Type R models.

Description

ASR subframe reinforcement kit with 32mm hollow swaybar is the ultimate startup kit for your suspension needs. This kit gives you the best of what ASR has to offer and is ASR’s flagship product. Since 2005 ASR has been providing the Honda/Acura community with high performance rear swaybar setups and continues to be the industry leader in its field. This kit can be adapted for all aspects of the automotive community from show cars to full blown race cars.

When choosing a 32mm hollow bar wall thickness it is important to know what your ultimate goal is as for every setup is different and will provide different handling characteristics to your vehicle.

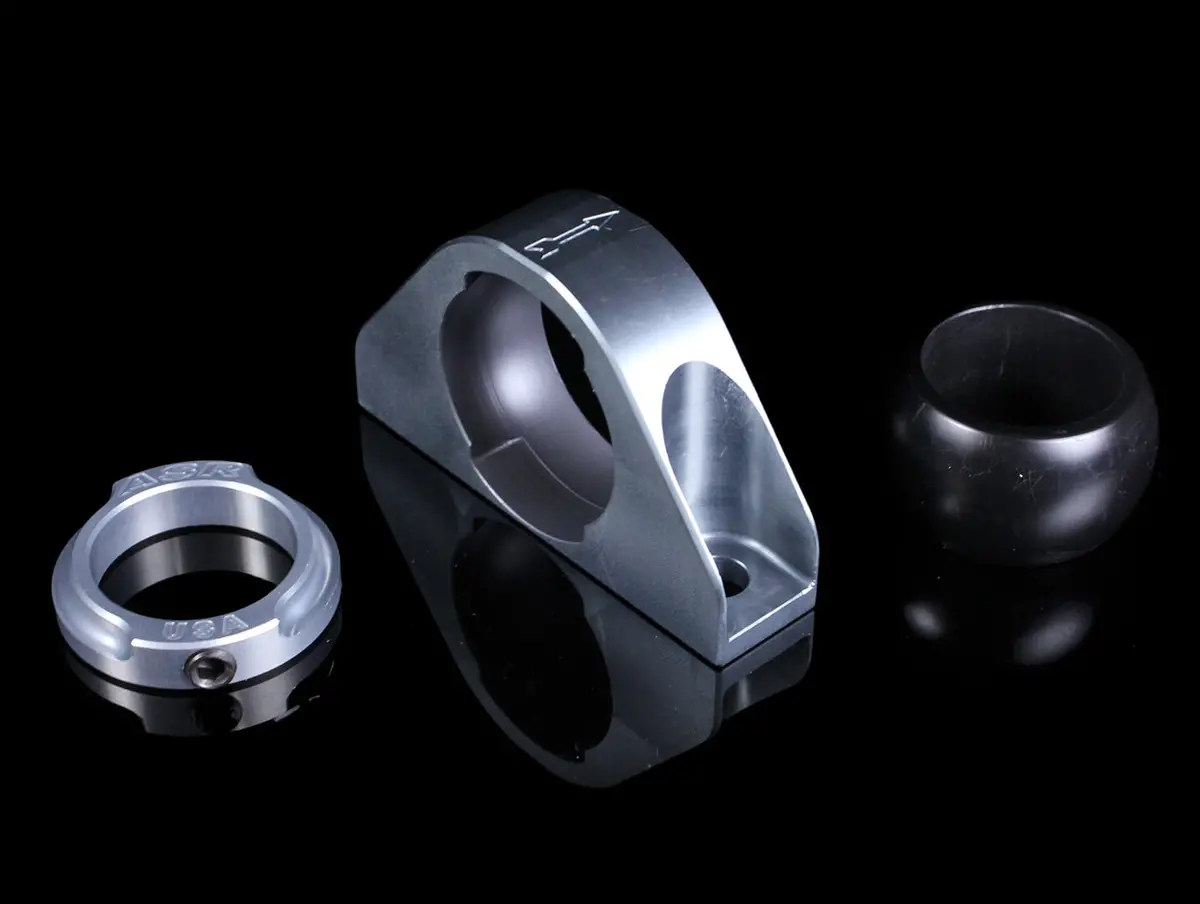

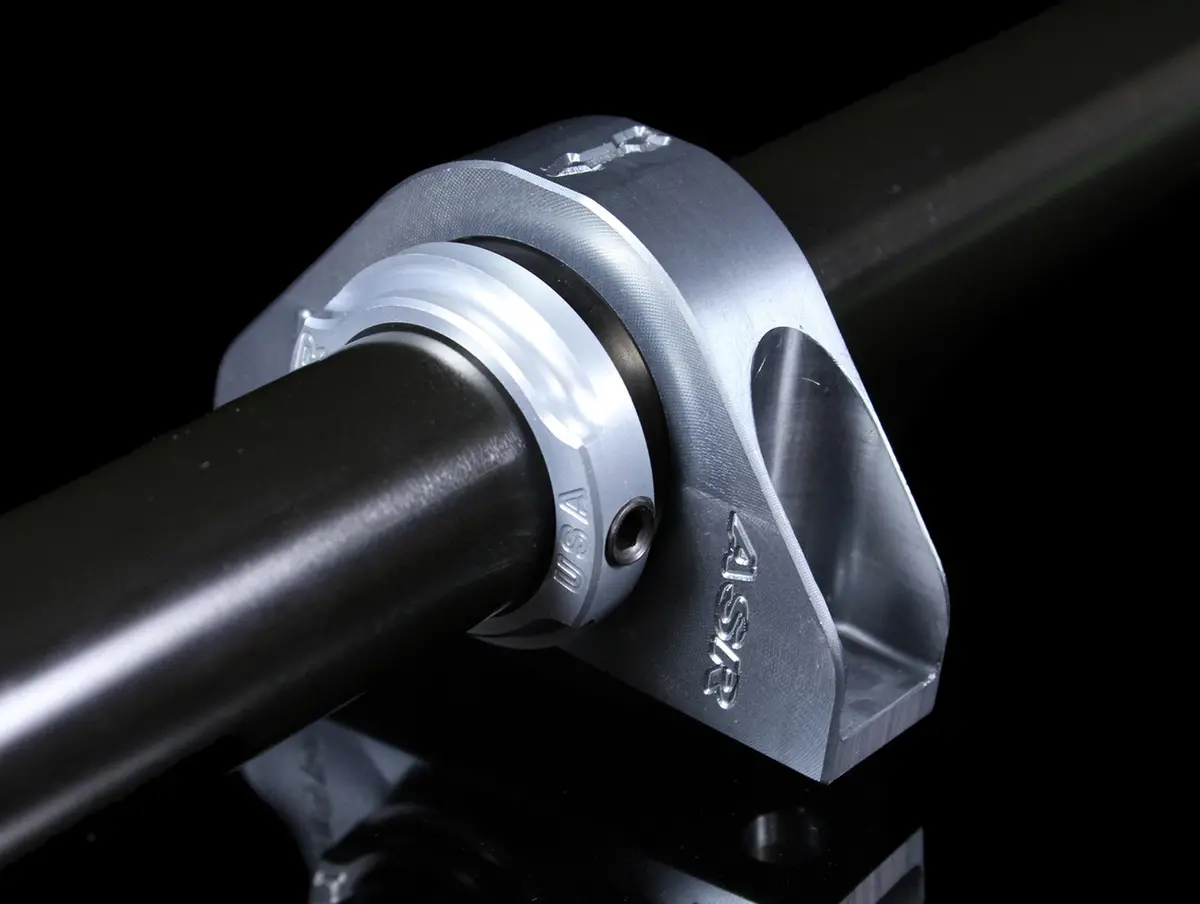

This kit uses the same ASR aluminum-delrin pillow block design combination that comes with all ASR hollow bar kits. The ASR delrin pillow block inserts are replaceable for maintenance unlike the more traditional pillow blocks people are used to, which are fixed and the inserts are non replaceable after they are worn out.

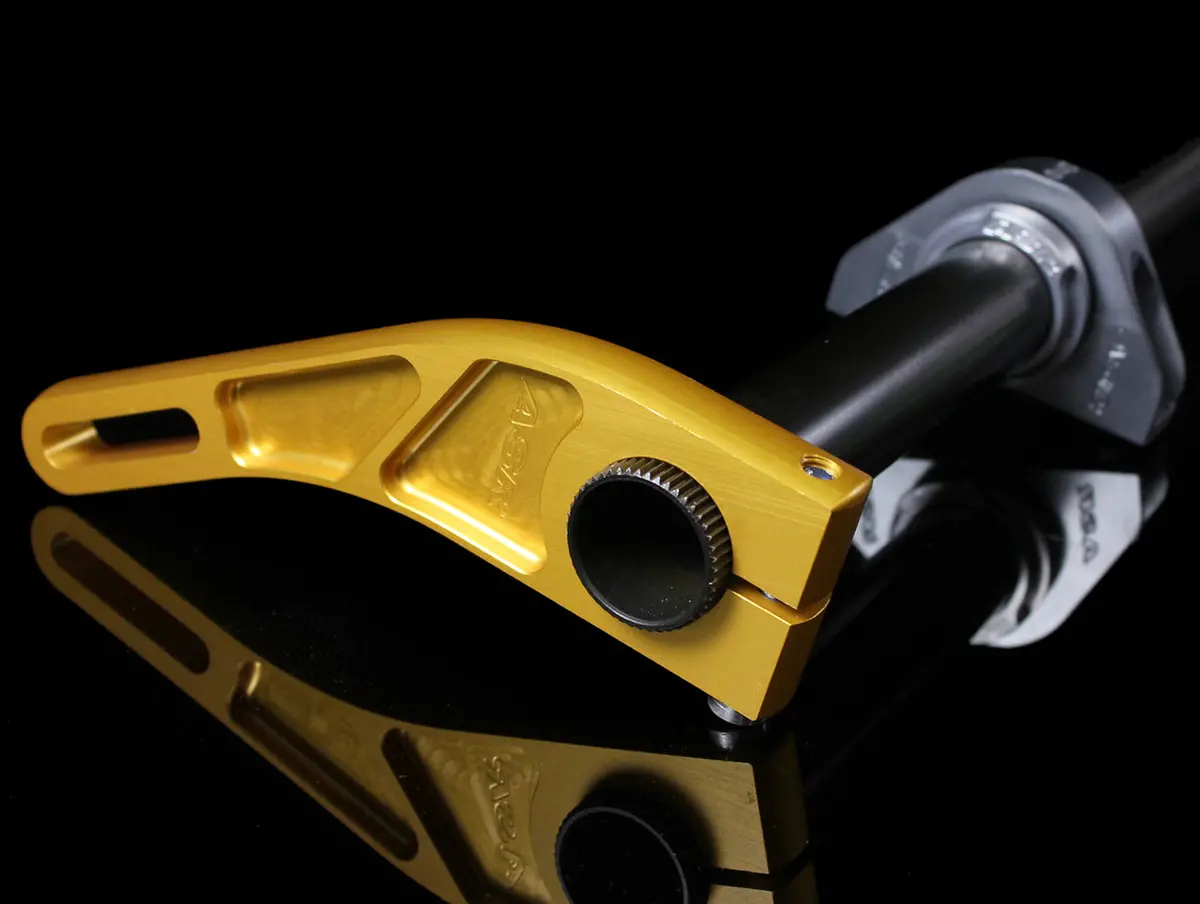

ASR billet machined aluminum arms are designed with adjustability in mind as well. The slotted or drilled holes allows the user to mount the supplied ASR endlinks in the optimum 90 degree/perpendicular angle to allow for greater load transfer from one side of the vehicle to the other. The shaft collar is also made of billet aluminum due to the materials lightweight properties and strength.

Note: Some vehicle applications do not come with nor require an ASR subframe reinforcement brace for hollow bar kit fitment – Specifically 88-91 Civic/CRX, 90-93 Integra, and 97-01 Integra-R vehicles.

Swaybar Features:

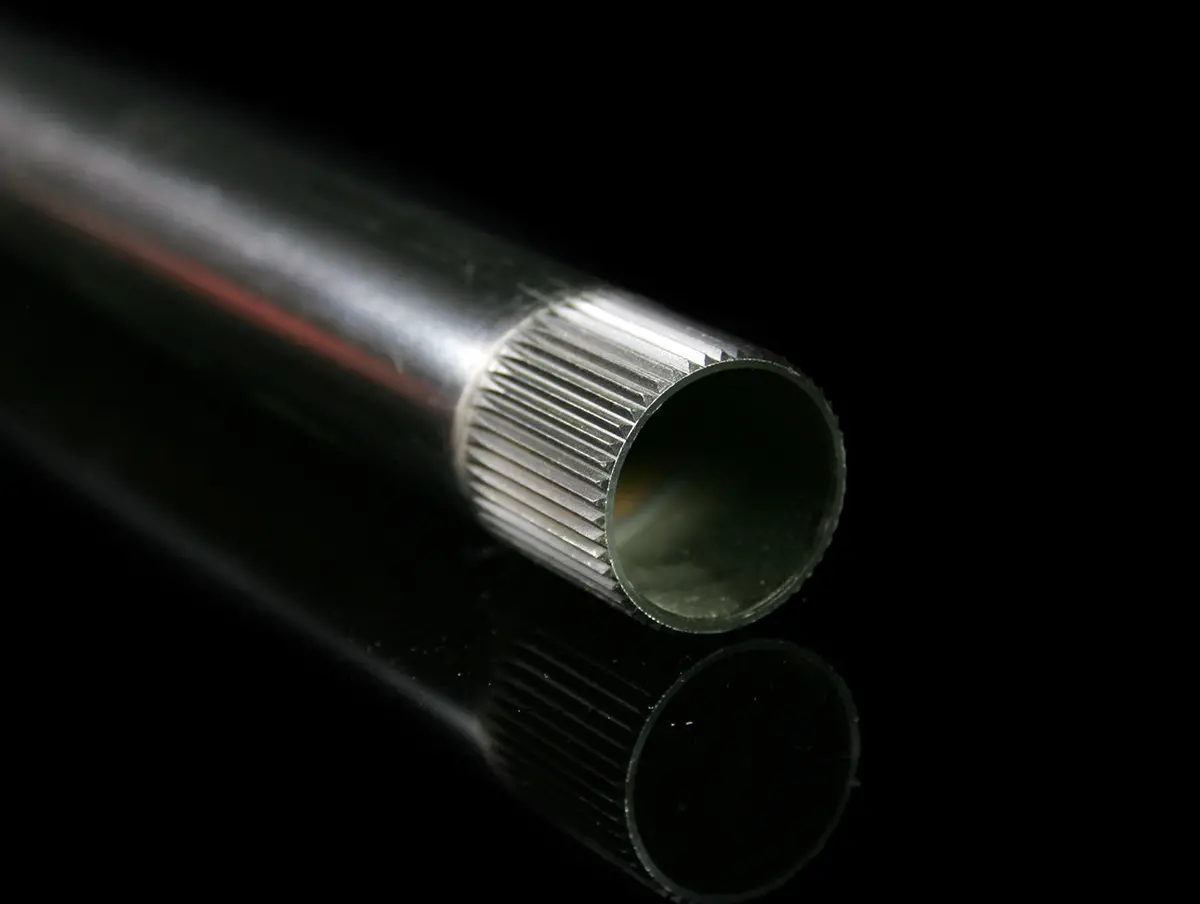

•  Heat treated 4130 Chromoly
•  Varying wall thickness for different applications
•  ASR machined aluminum arms
•  ASR machined aluminum pillow block brackets w/Delrin ball bushings
•  ASR machined aluminum shaft collars

Hollow Bar Applications:

• 2.5mm (.095″)  Bumpy Track/Hi-Speed Course
• 3mm (.120″)  Longer wheel base vehicle, Short Technical Course
• 5mm (.188″) Autocross/Mid-Speed Course
• 6.5mm (.250″)  Autocross/Low-Speed Course

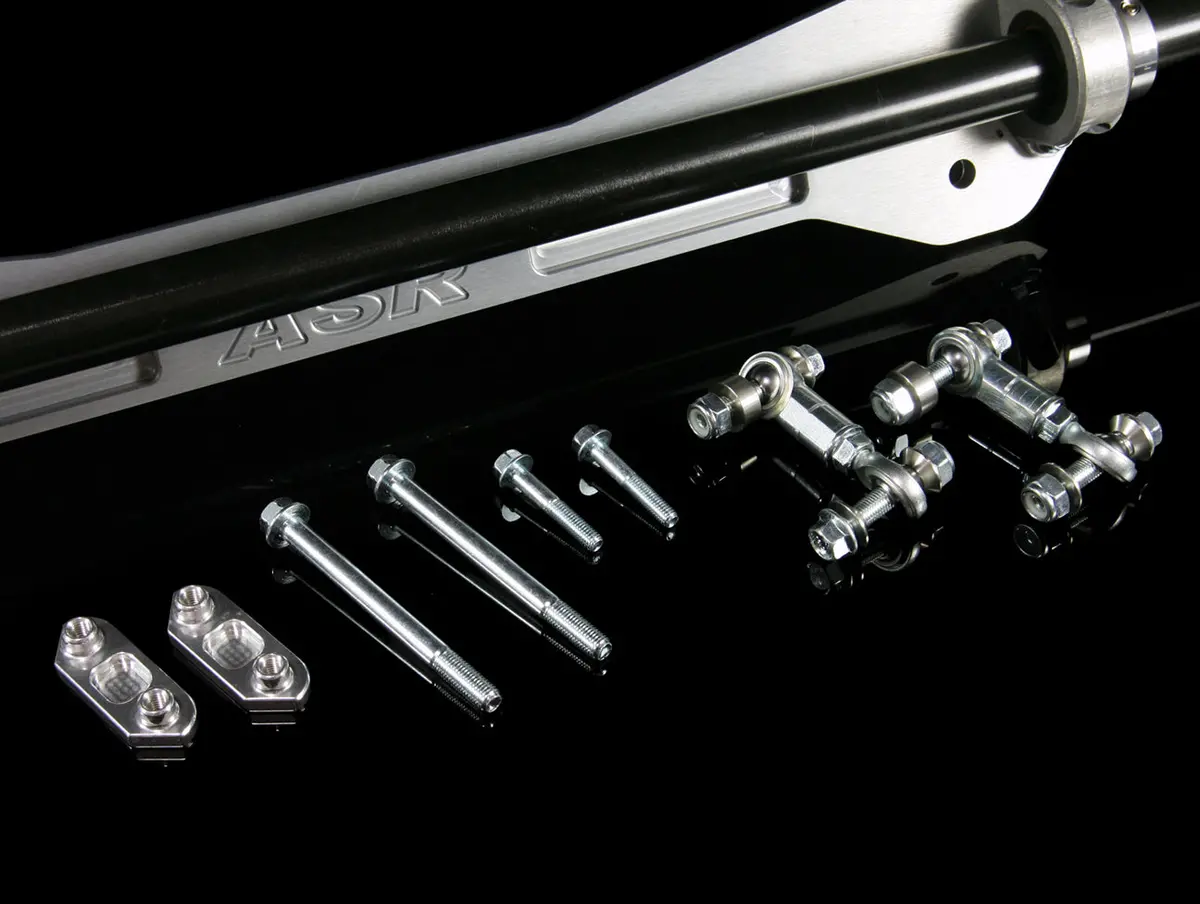

Kit Contents:

• ASR subframe reinforcement brace
• ASR subframe brace hardware kit

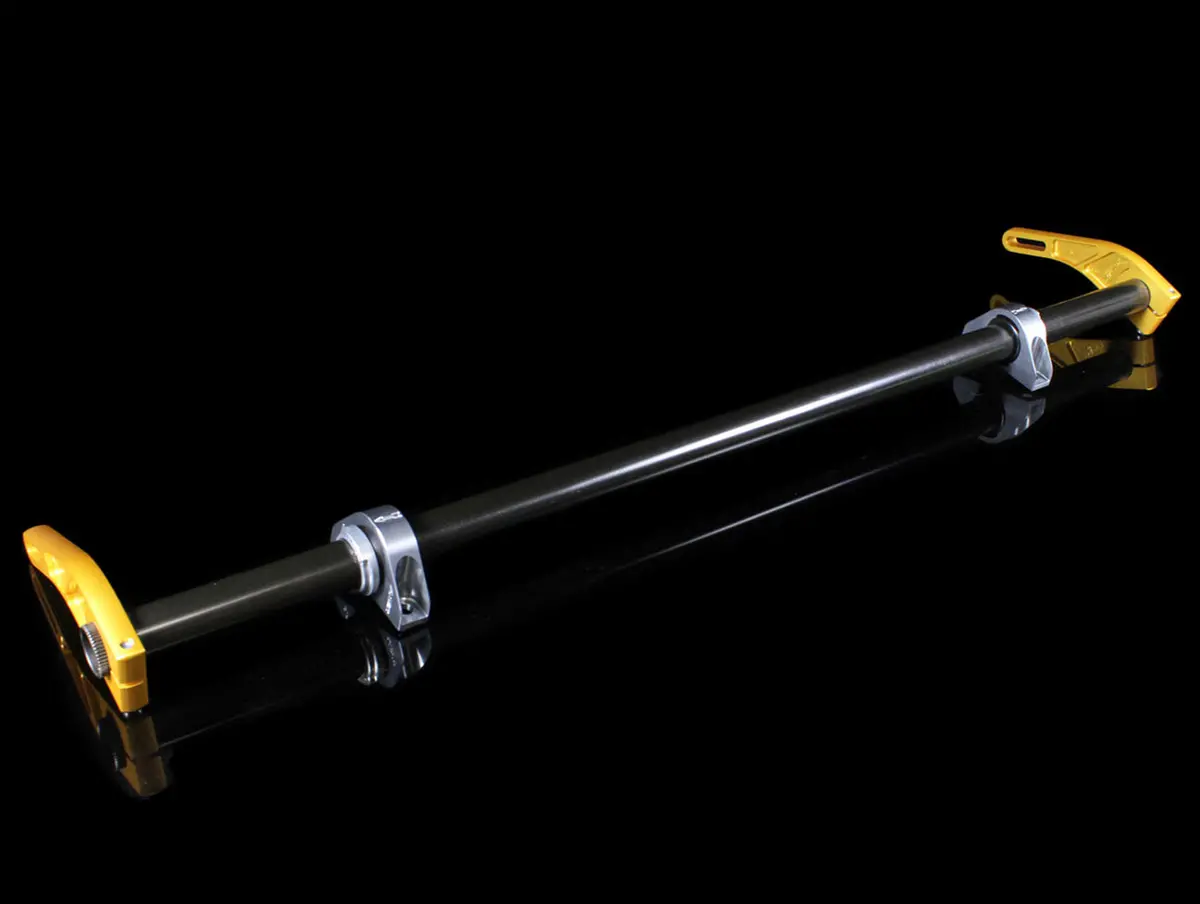

• ASR hollow swaybar
• ASR machined anodized gold aluminum arms
• ASR machined aluminum pillow block D-brackets w/Delrin ball bushings
• ASR machined aluminum shaft collars

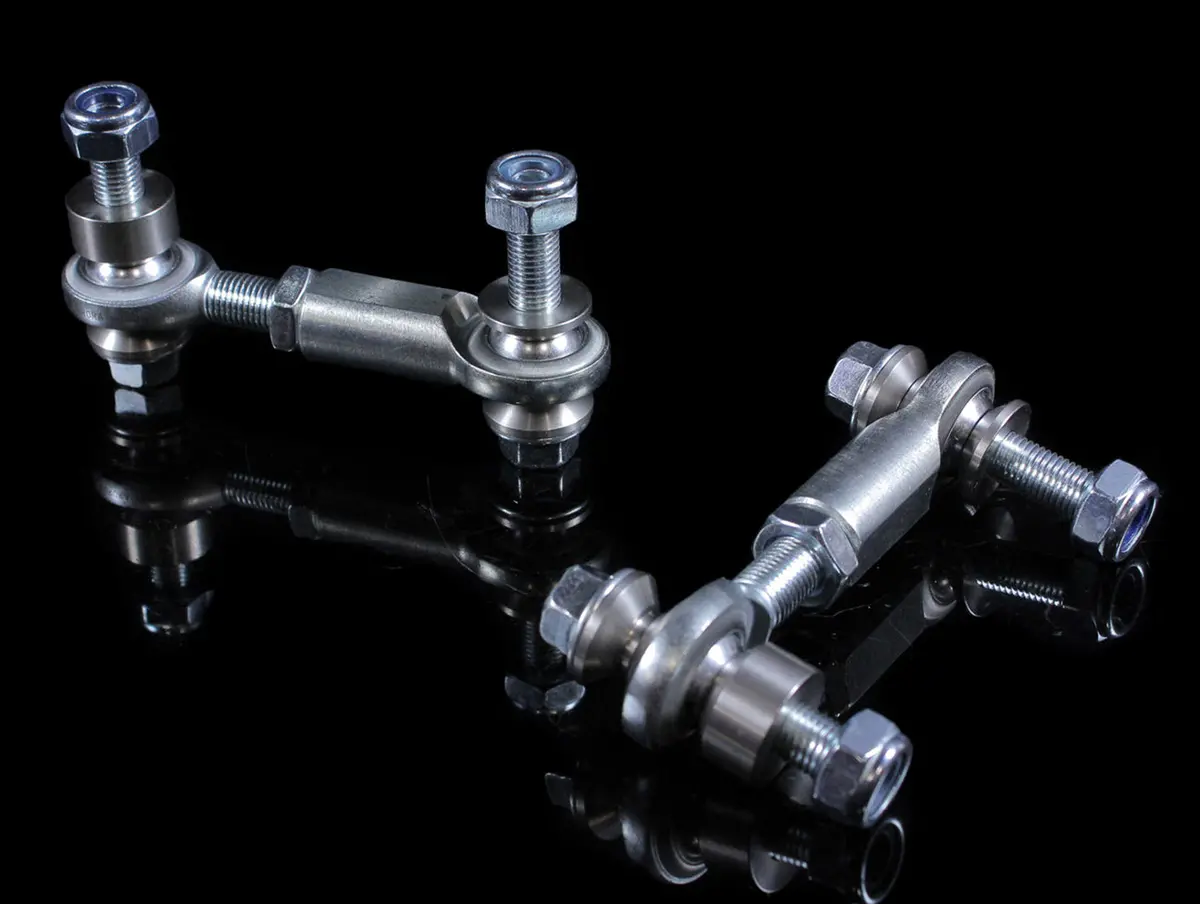

• ASR spherical endlinks w/hardware
• Instructions

See pull down menu for available vehicle applications.

2014 update:

• Billet arms are now anodized gold
• Billet D-brackets now have a removable and replaceable O-ring made of Delrin
• The D-bracket locking collar has been simplified and is lighter weight

Images used for illustration purposes. Kit contents may vary.
