Dobinsons 75mm IMS Monotube Suspension Lift Kit for Suzuki Jimny (2018–Present, GLX & Lite 3-Door)

Description

PLEASE CONTACT US FOR AVAILABILITY

*Front Coil Springs are rated for up to 40g’s of extra weight due to the addition of a Steel Bull Bar and/or Winch.

Dobinsons Spring & Suspension™ established in 1953, draw on several generations of family ownership and experience to be one of the leaders in the Suspension Industry in Australia, applying the years of knowledge into their products, and their Jimny 40mm Lift Kit is no exception.

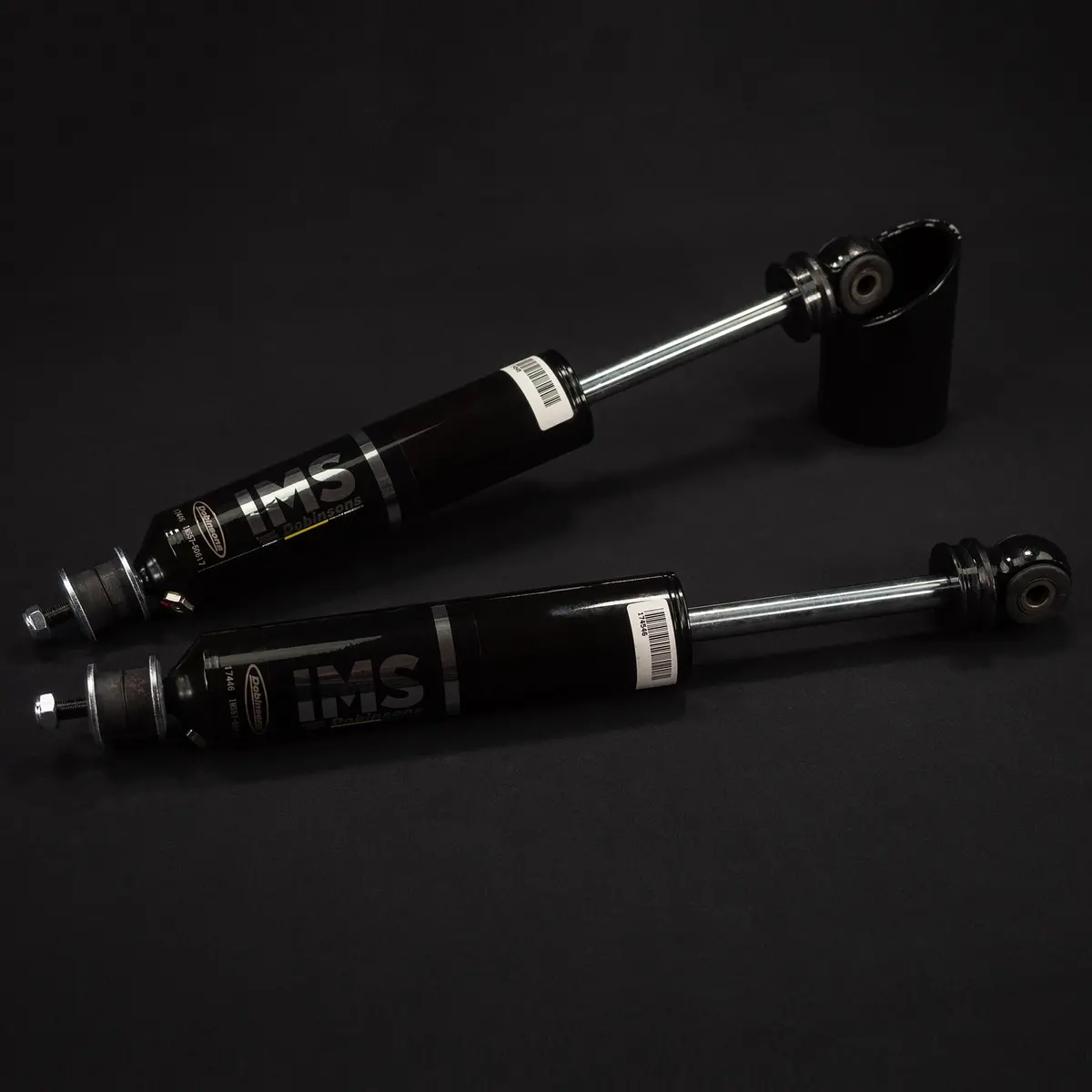

Featuring their new IMS Monotube Long-Travel Shock Absorbers which are designed for next level performance over twin tube shocks in Australia’s hot, harsh, and demanding conditions.

By utilising the Monotube design, Dobinsons IMS Shock Absorbers are able to resist fade far longer on corrugated roads, long or hard working 4wd trips, towing or even race conditions.

• More IMS Monotube Long-Travel Shock Absorber Features:
• Zero shock fade in all terrains
• Direct, bolt-on replacement for easy fitment
• Corrosion resistant (EDP Surface Protection)
• Heavy duty single piece lower leg
• Enormous oil capacity
• Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in offroad handling
• Race inspired Hi-Flow CNC 6061 Billet Alloy Piston for the ultimate in offroad handling

The IMS Shock Absorbers are mated with Dobinsons Linear Rate Coil Springs which are ‘hot wound’ and the hardening and tempering process is completed by an extremely precise electronically controlled furnace to eliminate breakage and sagging.

All Dobinsons™ coil springs are load tested and scragged 100% to eliminate subsequent spring sag, and ensure they meet and maintain the required specifications. We also perform spring fatigue and hardness testing using in-house state of the art testing equipment.

What’s Included:

IMS Monotube Long-Travel Front Shock Absorbers – IMS57-50613 x 2
IMS Monotube Long-Travel Rear Shock Absorbers  IMS57-50614 x 2
Linear Rate Front Coil Springs (75mm Lift Up to 40kgs Constant Load) – C57-146 x 1 Pair
Choice of Linear Rate Rear Coil Springs:
75mm Lift up to 60Kg Constant Load) – C57-147 x 1 Pair
75mm Lift 80-150Kg Constant Load) – C57-105 x 1 Pair
Crossmember Brace Drop Kit – WA57-580 x 1
Front Heavy Duty Adjustable Panhard Rod (Complete with Bushes) – PR57-1422 x 1
Rear Heavy Duty Adjustable Panhard Rod (Complete with Bushes) – PR57-1413 x 1
Eccentric Castor Correction Bushes ±2 ½ – 3° Castor Adjustment – WA57-511K x 4 Bushes
Rear Alignment Castor Kit – WA57-511K x 1
Headlight Sensor Bracket Extension – WA57-567K x 1
Extended Brake Line Kit – WA57-596K x 4 Brake Lines
Optional Supporting Accessories:
Heavy Duty Steering Damper – SD57-838
