- Dobot X-Trainer AI Operating Platform for Nova Robot (not included)
- Simulates complex environments with AI
- Supports human-robot collaboration
- Offers dual-arm dexterity
- Ensures fluid motion control
- Restores real-world scenarios

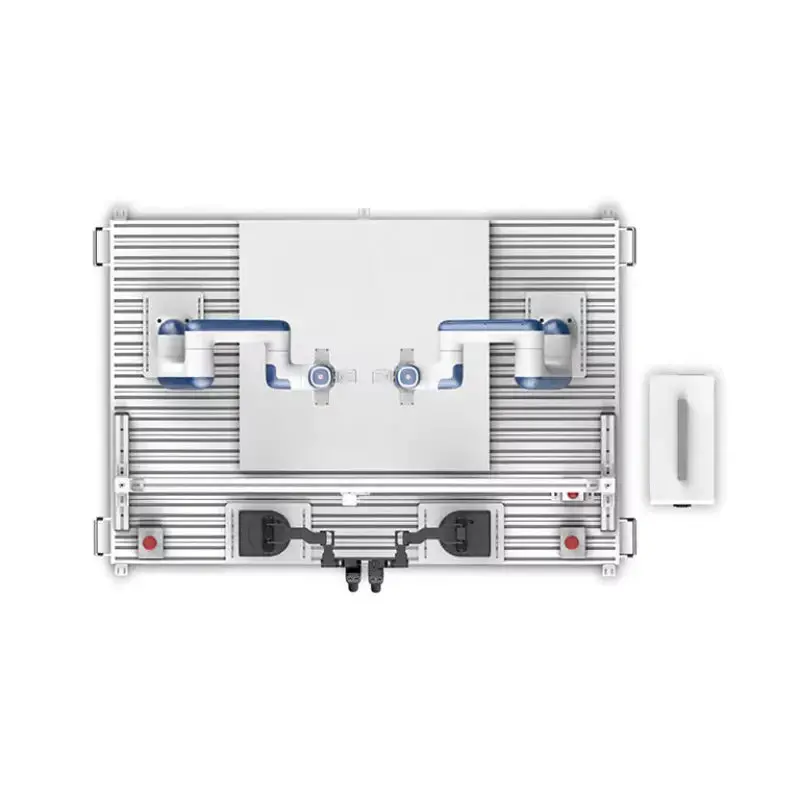

The Dobot X-Trainer AI Operating Platform (w/o Nova Robot) simulates the collection and training of dishes in intricate scenarios, utilizing artificial intelligence to model practical environments. This platform is equipped with a dual-arm system that offers exceptional restoration capabilities and flexibility. It provides a rich, immersive experience that supports future-proof, flexible collaboration between humans and robots. The Dobot X-Trainer is designed to deliver significant value in education that is oriented towards people and based on specific scenarios.
DOBOT X-Trainer provides a complete SDK that covers the entire data collection, model training, and autonomous inference workflow, with detailed documentation to systematically guide users through the entire data processing pipeline, greatly simplifying the learning and application process.
Developed with open APIs to access key data such as master/slave joint angles, gripper control, camera RGB/depth – allowing for flexible integration with custom AI models and research projects. The SDK also supports exporting specialized data formats for direct use with domain-specific neural networks.
Fast Learning: Significantly reduced by 70%, and routine scenario training (such as washing dishes or folding clothes) can be completed in just 2 hours.
Interference Resistance: During autonomous tasks, DOBOT X-Trainer can quickly correct real-time disturbances, such as recognizing and removing stains during washing dishes, thus demonstrating advanced AI capabilities.
Low Latency Operation: With a 25Hz end-to-end high-performance motion interface, the response speed is improved by 150% compared with similar products and is more stable.
Smooth operation: Features a spring-loaded chassis, powerful servos for precise movement, and an optimized primary manipulator for intuitive telecontrol, reducing user fatigue.
- 2x Teleoperated Master Hand
- 2x Slave-Hand Gripper
- 3x End of Master Hands & Camera
- 1x Base
- 1x Computer Training Platform
- Master Hand
- 149 x 130 x 58 mm
- Max Working Radius: 437 mm
- Base
- Folded (without camera bracket): 1630 x 1060 x 380 mm
- Unfolded (with camera bracket installed): 1530 x 960 x 1300 mm
- Nova 2 Slave-Hand Gripper: 160 x 202 x 75 mm
- Maximum Opening Distance: 95 mm
- Camera(module): 36.5 x 19.4 x 10.5 mm
PDF Files
- Dobot X-Trainer AI Operating Platform – User Manual
- Dobot X-Trainer AI Operating Platform – User Guide
docReady(function() {$(‘button[aria-controls=unique-tab-5]’).one(‘click’,function() {$(“#iframe-video-1″).html(”);})});
- Master Hand
- DOF: 6
- Motor: High-performance servo motor
- Buttons: Unlock button, record button
- Power Input: 100 V ~ 240 V AC，50/60 Hz
- Rated Voltage: DC 12V 2A
- Communication Interface: USB
- Material(s): Metal components + 3D printing (plastic)
- Operating Environment
- Temperature: 0°C – 40°C
- Humidity: 25% – 85%, non-condensing
- Weight: 1 kg
- Base
- Material(s): Aluminum alloy + metal
- Power Input: 100 V ~ 240 V AC,50/60 Hz
- Rated Power: 150 W
- Power Supply: DC 24V x6, max 4A per port, total output of 4A
- Communication Interface: Ethernet
- Communication Protocol: TCP/IP
- Indicators Tricolor: indicator light(s) x1
- Emergency Stop Switches: Number of emergency stop switches x2
- Weight: 85 Kg
- Nova 2 Slave-Hand Gripper
- Clamping Force: 0-15N
- Material(s): 3D printing (plastic)
- Operating Environment: Temperature：0°C – 40°C
- Humidity: 25% – 85%, non-condensing
- Weight: 0.6 Kg (including camera and bracket)
- Camera
- Model: Depth-sensing camera
- Depth FOV: 87° x 58°
- Depth output resolution: up to 1280 x 720
- Communication Interface: USB 2, USB 3.1
- Operating Environment
- 0 to 35 °C (ambient)
- 0 to 55 °C (casing)
