ReComputer J202 Carrier Board — Supports Jetson Nano, Xavier NX, and TX2 NX with 4× USB 3.1 Gen 2 Ports

Description

Description

• reComputer J202 Carrier Board for JetsonNano/XavierNX/TX2 NX w/ 4 USB 3.1 Gen 2, M.2 Key M, E
• High-performance compatibility
• Versatile connectivity options
• Seamless developer integration
• Robust interface array

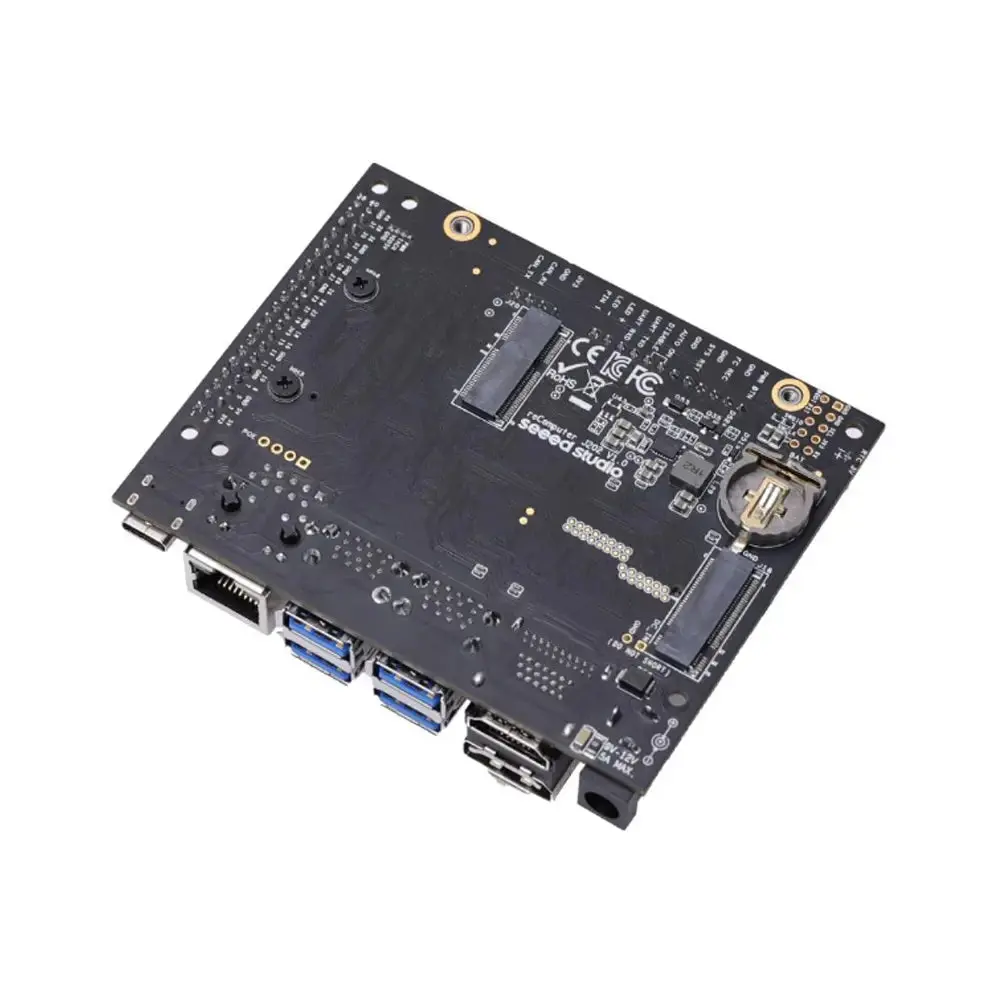

The reComputer J202 Carrier Board for JetsonNano/XavierNX/TX2 NX w/ 4 USB 3.1 Gen 2 is a high-performance carrier board compatible with NVIDIA Jetson Nano, Xavier NX, and TX2 NX modules.

This board is equipped with an array of interfaces including HDMI 2.0, Gigabit Ethernet, USB 3.1, M.2 Key E for Wi-Fi and Bluetooth connectivity, M.2 Key M, CSI camera interface, CAN bus, GPIO, I2C, I2S, and a fan connector. It is designed to match the functionality and dimensions of the NVIDIA Jetson Xavier NX DEVELOPER KIT’s carrier board, providing a seamless integration for developers.

View moreWhat’s Included

• 1x reComputer J202 Carrier Board

Dimensions

• PCB Size / Overall Size: 100 x 80 mm

Links

PDF File

• reComputer J202 Carrier Board for JetsonNano/XavierNX/TX2 NX w/ 4 USB 3.1 Gen 2 – Datasheet

Website

• reComputer J202 Carrier Board for JetsonNano/XavierNX/TX2 NX w/ 4 USB 3.1 Gen 2 – Wildfire Detection

Specifications

• reComputer J202
• Jetson Nano/Xavier NX/TX2 NX
• 1x HDMI+1x DP
• 2x CSI
• 1x Gigabit Ethernet (10/100/1000M)
• 4x USB 3.1 Type-A (10 Gbps for NX, 5 Gbps for Nano)
• 1x USB Type-C (Device mode)
• 1x M.2 Key M
• Micro SD card
• 1x Micro SD card slot (48 MHz CLK Frequency)
• 1x M.2 Key M
• 1x M.2 Key E
• 1x Fan Connector
• 1x CAN
• 1x 40-Pin
• RTC 2-Pin
• RTC socket
• 12V/5A (Barrel Jack 5/2.5mm)
• Power Cord provided only
