Description
- DOBOT Magician Mini Car Assembly Line
- Simulates automotive manufacturing processes
- Supports mixed-flow production for flexibility
- Features AI cameras for model recognition
- Includes modular and easy setup design
- Equipped with a 4-axis smart robotic arm
The DOBOT Magician Mini Car Assembly Line is an educational platform meticulously crafted to replicate the essential processes involved in automotive manufacturing. This innovative model integrates robotic arm programming, artificial intelligence-based visual recognition, and advanced sensor technologies to authentically simulate critical production stages such as welding, painting, and assembly. By embodying the principles of Industry 4.0, it offers students a comprehensive understanding of industrial production workflows and logic.
This assembly line is capable of simulating the automotive processes of welding, painting, and assembly, providing a realistic educational experience. It supports mixed-flow production, allowing for the assembly of two different vehicle models, which enhances the learning experience by demonstrating flexibility in manufacturing processes. The inclusion of AI cameras enables the recognition of different vehicle models, further enriching the educational value by incorporating cutting-edge technology into the learning environment.
The platform features a desktop-grade 4-axis smart robotic arm, which is central to the simulation of industrial tasks. Its modular base and cable tray design ensure ease of setup and operation, making it suitable for educational settings. The assembly line is equipped with an AI Camera Kit, a Photoelectric Sensor, a Laser Kit, and a Spray Painting Light Component, all of which contribute to a comprehensive simulation of a real-world automotive assembly line.
Note: Ensure proper handling and operation of the robotic arm and associated components to prevent injury or damage.
- 5x Magician (Basic) set
- 2x Conveyor Belt set
- 5x Magic Box set
- 1x AI Camera Kit set
- 5x Photoelectric Sensor
- 1x Laser Kit set
- 1x Spray Painting Light Component set
- 3x Assembly Line Positioning Baseplate
- Dimensions: 1500 x 880 mm
- Conveyor Belt (Effective Length): 600 mm
docReady(function() {$(‘button[aria-controls=unique-tab-5]’).one(‘click’,function() {$(“#iframe-video-1″).html(”);})});
- Magician (Basic)
- 4-axis
- Max Payload: 500 g
- Max Reach: 320 mm
- Conveyor Belt
- Max Speed: 120mm/s
- AI Camera Kit
- USB2.0 interface
- Integrated design with microphone; 0″-135″ adjustable angle
- Features
- Face recognition
- Image recognition
- OCR text recognition
- Voice recognition
- Photoelectric Sensor: Detection Range: 30 – 150 mm
- Laser Kit x1: 12-24V – Green laser Spray
- Painting Light x1: 12V, 18.5mm diameter spotlight

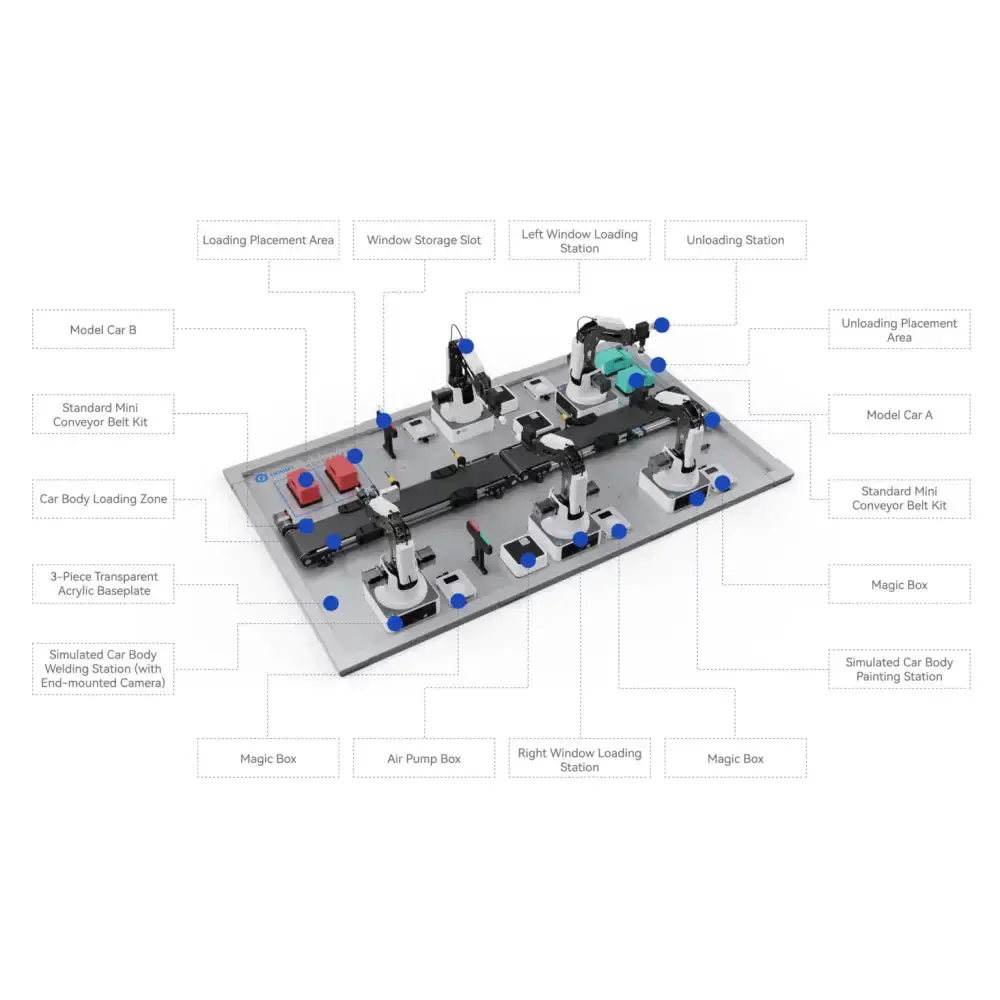

- Configuration List
- Desktop-Grade 4-axis robotic arm
- Simulated car transportation assembly line
- External controller for robotic arms
- AI-powered vehicle recognition triggers 2 different door assembly commands
- Position detection sensors (2 on conveyor, 3 additional)
- Simulates the car door welding process with a dot laser
- Simulates the painting process with lighting effects
- Main installation and positioning boards
- Note: Magician Robotics arms and conveyor belts are not included in the kit and must be purchased separately. Final list subject to actual shipment.
- Installation: The toolkit includes various mounting screws and hex wrenches.
