Description
- Shapeoko 5.1 Pro CNC Router 4×4 w/o Legs
- Cuts wood, plastic, and aluminum
- Includes Carbide Create CAD/CAM
- Features BitSetter for tool changes
- Offers LED lighting for visibility
- Ensures clean workspace with Dust Boot

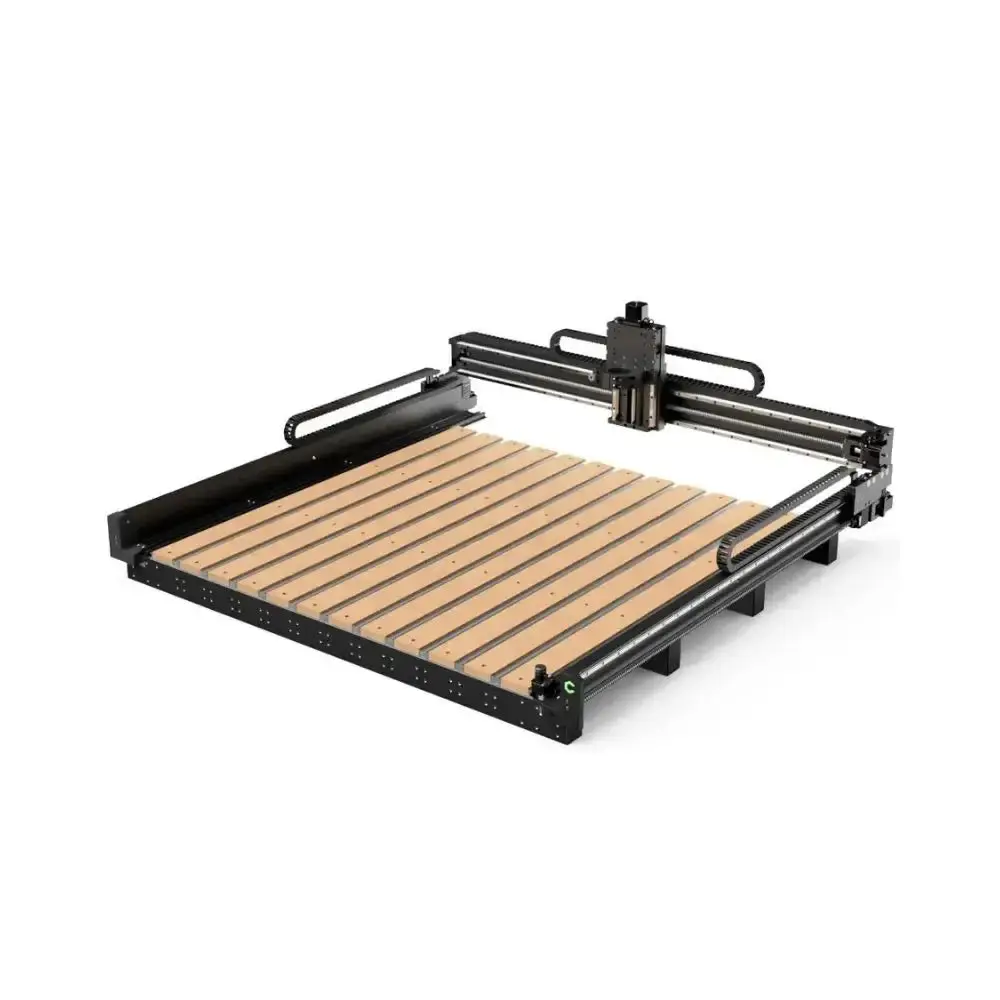

The Shapeoko 5.1 Pro CNC Router 4×4 w/o Legs is a sophisticated and high-performance machine designed for precision cutting of wood, plastic, and aluminum. This comprehensive system integrates advanced hardware and software solutions, ensuring enhanced productivity and accuracy. The router is engineered with hardened linear rails and ballscrews, which contribute to its ability to operate continuously and efficiently.
Included with the Shapeoko 5.1 Pro is the Carbide Create 2D CAD/CAM software, facilitating the design and manufacturing process. The machine also features a BitSetter, which simplifies tool changes, and LED lighting under the gantry for improved visibility during operation. Dust management is addressed with the Sweepy V2 Dust Boot, ensuring a cleaner working environment.
The router is equipped with a Power Pendant, providing remote control capabilities and an emergency stop function for enhanced safety. The Hybrid Table with T-slot workholding offers versatile and secure material handling. The system’s optically-isolated electronics ensure reliable performance, and it is compatible with 65mm spindles, allowing for a range of cutting applications.
Note: Ensure proper safety measures are followed during operation to prevent accidents.
- 1x Shapeoko 5.1 Pro CNC Router 4×4 w/o Legs
- 1x T-slot Hybrid Table
- 1x Shapeoko 5.1 Pro BitSetter
- 1x Carbide Motion control software
- 1x Carbide Create 2D CAD/CAM software
- Assembly tools
- 1x #201 .25″ Flat Endmill
- 12x M6 Teez-Nutz T-Nuts
- 6x Shapeoko Essentials Clamps
- 1x Sweepy 65mm V2
- 4x 30-minute 1-on-1 training sessions with a Carbide 3D expert via video chat
- 4 x 4 feet
- Machine Travel: 48.7 in (X) x 48.7 in (Y)
- Machine Footprint: 60 in (X) x 59 in (Y) x 23.25 in (Z)
- Hardened linear rails and ball screws for enhanced productivity and accuracy
- Capable of cutting wood, plastic, and aluminum
- Includes Carbide Create 2D CAD/CAM software
- Includes BitSetter for easy tool changes
- LED lighting under the gantry
- Sweepy V2 Dust Boot included for dust collection
- Power Pendant for remote control and emergency stop
- Hybrid Table with T-slot workholding
- Optically-isolated electronics
- Compatible with 65mm spindles
- Ballscrew (X/Y): 16 mm diameter, 20 mm pitch with custom wiper
- Ballscrew (Z): 16 mm diameter, 10 mm pitch
- Linear Rails: HG-15
- Homing Switches: Inductive sensors with dual-Y homing
- Ballscrew Accuracy: ±50 µm per 300 mm
- Step Length (X/Y): 0.012 mm
- Step Length (Z): 0.006 mm
- Spindle Mount: 65 mm diameter
- Total Z Travel: 6.1 in
- Total Z Travel (with Sweepy Pro): 5.51 in
- Clearance to Z-Axis (Hybrid Table): 4 in
- Clearance to Z-Axis (No Hybrid Table): 5 in
- Gantry Shift Distance for Joinery: 3.15 in
- T-Slot Spacing: 4.04 in (center-to-center)
- Voltage: 110 V or 220 V (auto-switching)
- Amperage: 4 A (machine only)
- AC Plug: IEC C14 connector to NEMA 5-15P (standard US plug)
