M5Stack LLM-8850 AI Accelerator Development Kit

Description

Description

• M5Stack LLM-8850 Kit AI Accelerator for Edge AI & Embedded Computing
• Accelerates multimodal AI tasks seamlessly
• Connects efficiently with Raspberry Pi 5
• Provides secure boot and encryption
• Handles simultaneous video encode/decode
• Maintains low temperature under full load

The M5Stack LLM-8850 Kit AI Accelerator is a sophisticated AI accelerator kit tailored for edge AI and embedded computing applications. It comprises the LLM-8850 Card AI accelerator and the LLM-8850 PiHat adapter board. The LLM-8850 Card, built on the Axera AX8850 SoC, features an M.2 M-Key 2242 form factor, offering up to 24 TOPS @ INT8 of computational power in a compact design. This card is adept at accelerating multimodal large-model inference and video analytics tasks. It incorporates an active cooling system with a micro blower fan and a CNC aluminum fin heatsink, which is intelligently controlled by an onboard EC to maintain stable low-temperature operation, even under prolonged full load or in enclosed environments, thereby preventing thermal throttling.

The LLM-8850 PiHat adapter board enhances connectivity by providing a 2.54-40P bus and a USB Type-C PD power input. It connects to the Raspberry Pi 5 through a PCIe expansion FPC adapter, facilitating the integration of high-performance AI acceleration on the Raspberry Pi platform. This enables the development of compact and efficient edge intelligence systems. The kit supports secure boot and encryption with a hardware security module, ensuring data protection. Additionally, it offers native AXCL support for seamless model deployment across various AI frameworks and supports simultaneous H.264/H.265 encoding and decoding.

Applications

• Edge AI inference deployment
• Embedded video analytics
• Raspberry Pi AI computing expansion
• Multimodal large-model implementation

Note: Ensure proper handling to avoid exposure to high temperatures during operation.

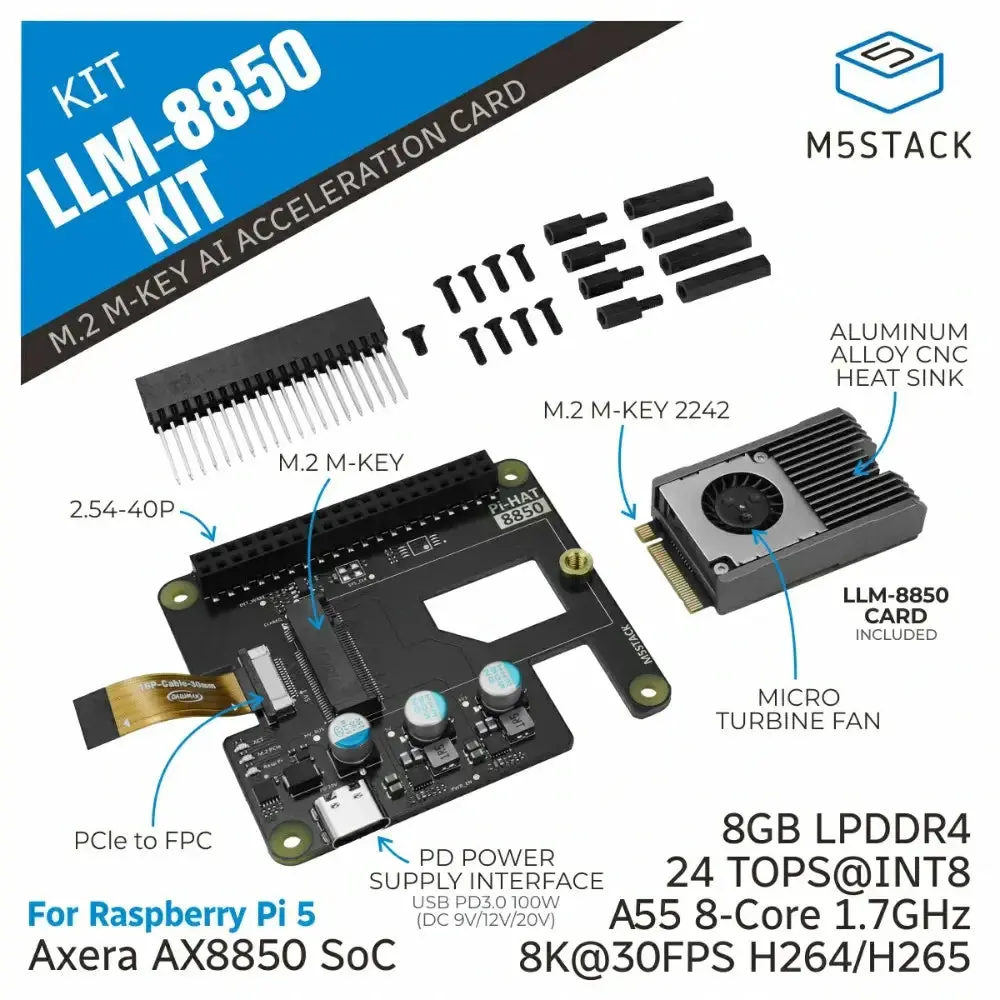

View moreWhat’s Included

• 1x LLM-8850 Card (8G)
• 1x LLM-8850 PiHat
• 1x 2.54-40P Female Header
• 1x Screw and Standoff Accessory Pack

Dimensions

• LLM-8850 Card: 42.6 x 24.0 x 9.7 mm
• LLM-8850 PiHat Adapter Board: 65.0 x 58.0 x 12.7 mm (including LLM-8850 Card)

Links

Websites

• M5Stack LLM-8850 Kit AI Accelerator – Card User Guide
• M5Stack LLM-8850 Kit AI Accelerator – Product Guide
• M5Stack LLM-8850 Kit AI Accelerator – Usage Instructions
• M5Stack LLM-8850 Kit AI Accelerator – Usage Examples
• M5Stack LLM-8850 Kit AI Accelerator – SDK API

PDF Files

• M5Stack LLM-8850 Kit AI Accelerator – Schematics
• M5Stack LLM-8850 Kit AI Accelerator – Card Model Size

Specifications

• High-performance NPU: 24 TOPS @ INT8, octa-core Cortex-A55 1.7 GHz CPU
• Intelligent cooling/power: onboard blower fan and CNC aluminum integrated heatsink, EC-monitored temperature–current–speed closed loop
• 8GB high-bandwidth memory: 64-bit LPDDR4x, 4266 Mbps
• Hardware video engine: 8K @ 30 fps H.264/H.265 encoding, 8K @ 30 fps decoding, supports 16-channel 1080P parallel decoding
• Secure boot and encryption: AES/DES/3DES/SHA-256 hardware security module
• Native AXCL support: one-click full-stack model deployment for CNN, Transformer, CLIP, Whisper, Llama3.2, Qwen3, InternVL3, etc., with H.264/H.265 simultaneous encode/decode transcoding
• USB Type-C PD power input: USB PD3.0 100W protocol, DC 24V overvoltage protection
• Power capability requirement: > 9V@3A (27W)
