Description
Description

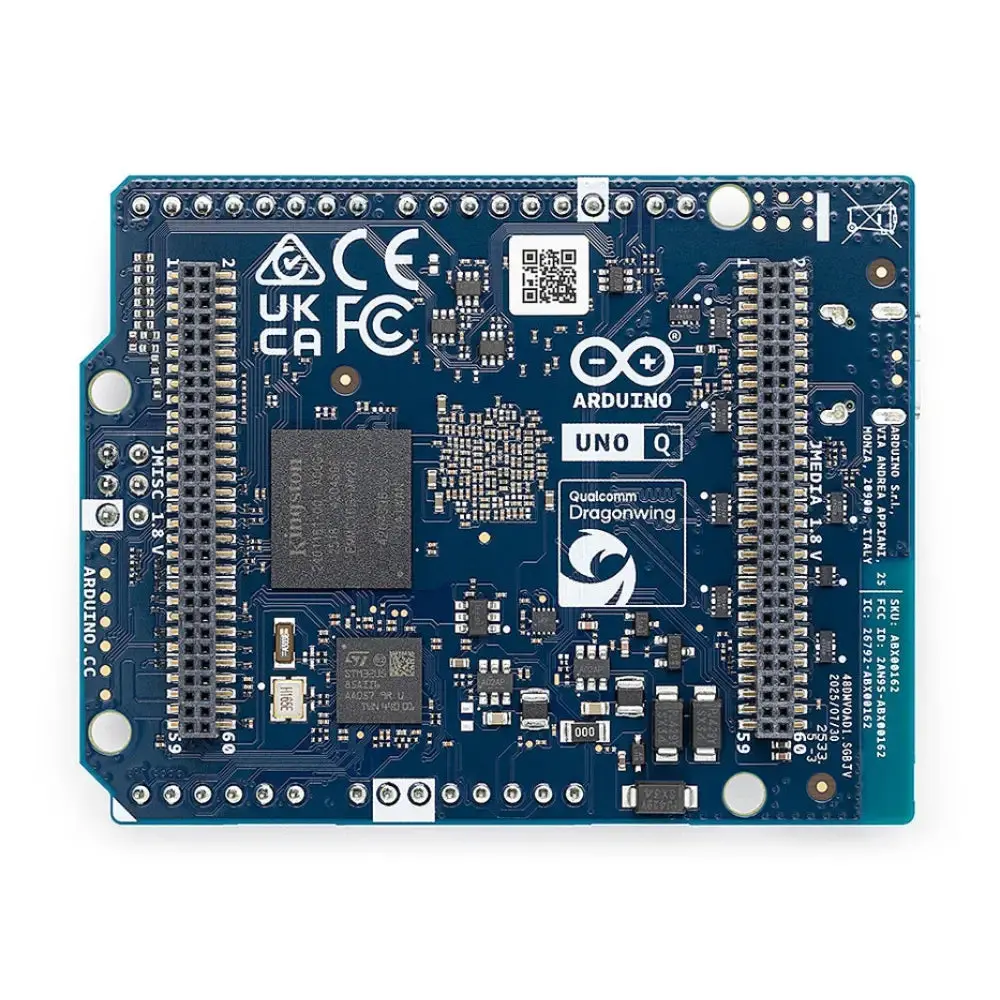

- Arduino Uno Q 2GB
- Bridge high-performance with real-time control
- Enable advanced features like voice commands
- Support multi-display and high-resolution video
- Include dual-band Wi-Fi and Bluetooth 5.1
- Run Linux Debian OS and Arduino Core
The Arduino Uno Q 2GB bridges high-performance computing with real-time control, making it suitable for advanced applications such as object recognition, voice commands, and motion detection. This 2-GB variant offers a cost-effective solution for coding when connected to a computer, enabling the creation of projects that operate independently of a monitor or keyboard.
- 1x Arduino Uno Q 2GB
- 68.85 x 53.34 mm
PDF Files
- Arduino Uno QB 2GB – Schematics
- Arduino Uno Q 2GB – Datasheet
- Microprocessor: Qualcomm Dragonwing QRB2210, Quad-core Arm Cortex-A53 at 2.0 GHz, Adreno GPU 3D graphics accelerator, 2x ISP (13 MP + 13 MP or 25 MP) at 30 fps
- Microcontroller: STM32U585 Arm Cortex-M33 up to 160 MHz, 2 MB flash memory, 786 KB SRAM
- RAM: 2GB LPDDR4
- Storage: 16GB eMMC
- Power Supply: From USB-C connector 5 V max at 3 A, Input Voltage (VIN): 7-24 V
- Connectivity: Dual-band Wi-Fi 5 (2.4/5 GHz), Bluetooth 5.1
- Interfaces: I2C/I3C, SPI, PWM, CAN, UART, PSSI, GPIO, JTAG, ADC
- Video: Video output support via USB-C, MIPI DSI pins on JMEDIA header
- Extra: 4x RGB user-controllable LEDs, 8×13 Blue LED Matrix, 1x Qwiic connector voltage 3V3, I2C, 1x User push-button, JCTL: MPU Remote Debug connector
- Operating System: Linux Debian OS with upstream support, Arduino Core on Zephyr OS
- Containerization: Docker and Docker Compose support
- Supported Operating Systems for Arduino App Lab: Windows 10 or later (64-bit), macOS 11 or later (64-bit), Ubuntu 22.04 or later, and Debian Trixie (64-bit)
