Description
Description
- Arduino Uno Q 4GB
- Integrates dual powerful processors for advanced applications
- Supports sophisticated tasks like object recognition and voice commands
- Offers high-speed connectivity with Wi-Fi 5 and Bluetooth 5.1
- Features versatile USB-C with host/device and video output
- Equipped with expandable interfaces for diverse integration

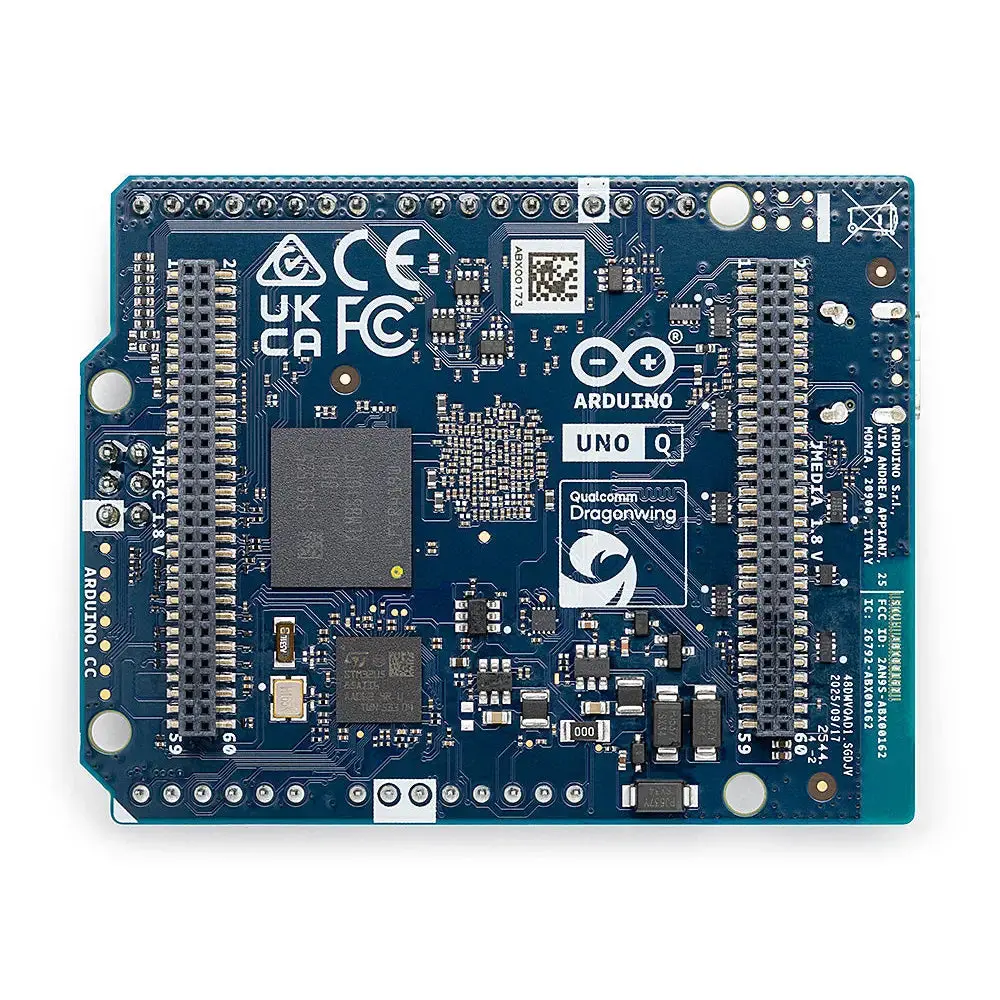

The Arduino Uno Q 4GB is an innovative dual-brain platform that integrates a Linux Debian-capable Qualcomm Dragonwing QRB2210 microprocessor with a real-time STM32U585 microcontroller. This combination allows for the execution of sophisticated applications, including object recognition, voice command processing, and motion detection.
- 1x Arduino® UNO™ Q 4GB board
- 68.85 x 53.34 mm
PDF Files
- Arduino Uno Q 4GB – Schematics
- Arduino Uno Q 4GB – Datasheet
- Microprocessor: Qualcomm Dragonwing QRB2210, Quad-core Arm Cortex-A53 at 2.0 GHz, Adreno GPU 3D graphics accelerator, 2x ISP (13 MP + 13 MP or 25 MP) at 30 fps
- Microcontroller: STM32U585 Arm Cortex-M33 up to 160 MHz, 2 MB flash memory, 786 KB SRAM
- RAM: 4GB LPDDR4
- Power Supply: From USB-C connector 5 V max at 3 A, Input Voltage (VIN): 7-24 V
- Storage: 32GB eMMC
- USB: 1x USB-C port with host/device role switching, power role switch, and video output
- Connectivity: Wi-Fi 5 2.4/5GHz with onboard antenna, Bluetooth 5.1 with onboard antenna
- Interfaces: I2C/I3C, SPI, PWM, CAN, UART, PSSI, GPIO, JTAG, ADC
- Video: Video output support via USB-C, MIPI DSI pins on JMEDIA header
- Extra: 4x RGB user-controllable LEDs, 8×13 Blue LED Matrix, 1x Qwiic connector voltage 3V3, I2C, 1x User push-button, JCTL: MPU Remote Debug connector
- Operating System: Linux Debian OS with upstream support, Arduino Core on Zephyr OS
- Containerization: Docker and Docker Compose support
- Supported Operating Systems for Arduino App Lab: Windows 10 or later (64-bit), macOS 11 or later (64-bit), Ubuntu 22.04 or later, and Debian Trixie (64-bit)
